P120

  • Tapered Pole
  • Simple Base
  • 8′, 10′, 12′, 14′ Height
  • 4-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 11 1/2″ dia. x 2 3/8″ Base Size
  • 7 1/2″ – 9 1/2″ Bolt Circle
  • 12 1/8″ dia. x 3 1/4″ Base Cover
  • 4.11-9.78 EPA @ 80 MPH
  • 2.01-6.10 EPA @ 100 MPH
Spec Sheet Instructions

P150

  • Straight Pole
  • Simple Base
  • 8′, 10′ Height
  • 3″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 9 5/8″ dia. x 1 3/8″ Base Size
  • 7″ Bolt Circle
  • 10 1/4″ dia. x 2 3/4″ Base Cover
  • 2.19-3.19 EPA @ 80 MPH
  • 1.07-1.80 EPA @ 100 MPH
Spec Sheet Instructions

P195

  • Straight Pole
  • Simple Base
  • 12′, 14′, 15′, 16′, 18′, 20′ Height
  • 4″ Pole Diameter
  • 4″ Tenon Diameter
  • 0.188″ Wall
  • 11 1/2″ dia. x 2 3/8″ Base Size
  • 7 1/2″ – 9 1/2″ Bolt Circle
  • 12 1/8″ dia. x 3 1/4″ Base Cover
  • 2.17-6.45 EPA @ 80 MPH
  • 0.93-3.88 EPA @ 100 MPH
Spec Sheet Instructions

P1150

  • Tapered Pole
  • Candlestick Base
  • 8’6″, 10’6″, 12’6″ Height
  • 4-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 11″ dia. x 30″ Base Size
  • 7″ Bolt Circle
  • Base Cover N/A
  • 5.55-9.06 EPA @ 80 MPH
  • 2.95-5.42 EPA @ 100 MPH
Spec Sheet Instructions

P1511

  • Straight Pole
  • Fluted Bottleneck/Square Base
  • 8′, 10′, 12′ Height
  • 3″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 8 1/4″ sq. x 27 3/8″ Base Size
  • 9-3/8″ Bolt Circle
  • 9″ sq. x 3″ Base Cover
  • 6.64-9.99 EPA @ 80 MPH
  • 3.72-5.84 EPA @ 100 MPH
Spec Sheet Instructions

P1516

  • Straight Pole
  • Fluted Bottleneck/Round Base
  • 8′, 10′, 12′ Height
  • 3″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 8 1/4″ sq. x 27 3/8″ Base Size
  • 9-3/8″ Bolt Circle
  • 12 3/4″ dia. x 5 1/2″ Base Cover
  • 6.64-9.99 EPA @ 80 MPH
  • 3.72-5.84 EPA @ 100 MPH
Spec Sheet Instructions

P1521

  • Tapered Pole
  • Fluted Bottleneck/Square Base
  • 8′, 10′, 12′, 14′ Height
  • 4-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″, 0.188″ (14′) Wall
  • 8 1/4″ sq. x 27 3/8″ Base Size
  • 9-3/8″ Bolt Circle
  • 9″ sq. x 3″ Base Cover
  • 7.57-10.24 EPA @ 80 MPH
  • 4.26-5.78 EPA @ 100 MPH
Spec Sheet Instructions

P1526

  • Tapered Pole
  • Fluted Bottleneck/Round Base
  • 8′, 10′, 12′, 14′ Height
  • 4-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″, 0.188″ (14′) Wall
  • 8 1/4″ sq. x 27 3/8″ Base Size
  • 9-3/8″ Bolt Circle
  • 12 3/4″ dia. x 5 1/2″ Base Cover
  • 7.57-10.24 EPA @ 80 MPH
  • 4.26-5.78 EPA @ 100 MPH
Spec Sheet Instructions

P1561

  • Straight Fluted Pole
  • Fluted Bottleneck/Square Base
  • 8′, 10′, 12′ Height
  • 3″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 8 1/4″ sq. x 27 3/8″ Base Size
  • 9-3/8″ Bolt Circle
  • 9″ sq. x 3″ Base Cover
  • 6.50-9.77 EPA @ 80 MPH
  • 3.65-5.72 EPA @ 100 MPH
Spec Sheet Instructions

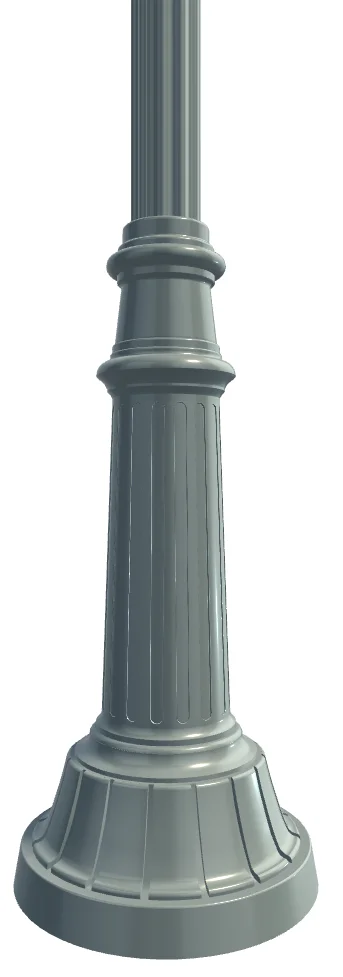

P1566

  • Straight Fluted Pole
  • Fluted Bottleneck/Round Base
  • 8′, 10′, 12′ Height
  • 3″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 8 1/4″ sq. x 27 3/8″ Base Size
  • 9-3/8″ Bolt Circle
  • 12 3/4″ dia. x 5 1/2″ Base Cover
  • 6.50-9.77 EPA @ 80 MPH
  • 3.65-5.72 EPA @ 100 MPH
Spec Sheet Instructions

P1600

  • Tapered Pole
  • Pedestal Base
  • 10′, 12′, 14′, 16′ Height
  • 4-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 16″ dia. x 22″ Base Size
  • 8″ – 13″ Bolt Circle
  • Base Cover N/A
  • 5.21-12.53 EPA @ 80 MPH
  • 2.64-7.52 EPA @ 100 MPH
Spec Sheet Instructions

P1610

  • Straight Pole
  • Pedestal Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 4″ Tenon Diameter
  • 0.125″ Wall
  • 16″ dia. x 22″ Base Size
  • 8″ – 13″ Bolt Circle
  • Base Cover N/A
  • 5.21-12.53 EPA @ 80 MPH
  • 2.64-7.52 EPA @ 100 MPH
Spec Sheet Instructions

P1711

  • Tapered Pole
  • Octagon Base
  • 10’8″, 12’8″, 14’8″, 16’8″ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 10 1/2″ sq. x 22″ Base Size
  • 11-3/8″ – 12-3/4″ Bolt Circle
  • 11 1/2″ sq. x 2 1/2″ Base Cover
  • 11.65-24.75 EPA @ 80 MPH
  • 6.71-15.39 EPA @ 100 MPH
Spec Sheet Instructions

P1761

  • Straight Fluted Pole
  • Fluted Bottleneck/Octagon Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 10 1/2″ sq. x 49″ Base Size
  • 11-3/8″ – 12-3/4″ Bolt Circle
  • 11 1/2″ sq. x 2 1/2″ Base Cover
  • 3.10-8.54 EPA @ 80 MPH
  • 1.23-4.99 EPA @ 100 MPH
Spec Sheet Instructions

P1791

  • Tapered Pole
  • Fluted Bottleneck/Octagon Base
  • 10′, 12′, 14′, 16′ Height
  • 4-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 10 1/2″ sq. x 49″ Base Size
  • 11-3/8″ – 12-3/4″ Bolt Circle
  • 11 1/2″ sq. x 2 1/2″ Base Cover
  • 3.10-8.54 EPA @ 80 MPH
  • 1.23-4.99 EPA @ 100 MPH
Spec Sheet Instructions

P2025

  • Tapered Pole
  • Fluted Base
  • 10′, 12′, 14′, 16′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″, 0.188″ (14′ and up) Wall
  • 16″ dia. x 21″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 9.90-14.91 EPA @ 80 MPH
  • 5.38-8.83 EPA @ 100 MPH
Spec Sheet Instructions

P2060

  • Straight Fluted Pole
  • Fluted Base
  • 10′, 12′, 14′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 16″ dia. x 21″ Base Size
  • 12″ Bolt Circle
  • Base Cover N/A
  • 4.46-8.23 EPA @ 80 MPH
  • 2.24-4.47 EPA @ 100 MPH
Spec Sheet Instructions

P2061

  • Straight Fluted Pole
  • Fluted Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 16″ dia. x 21″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 4.62-11.29 EPA @ 80 MPH
  • 1.93-6.17 EPA @ 100 MPH
Spec Sheet Instructions

P2063

  • Straight Flat Fluted Pole
  • Fluted Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.313″ Wall
  • 16″ dia. x 21″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 8.84-19.19 EPA @ 80 MPH
  • 4.69-11.29 EPA @ 100 MPH
Spec Sheet Instructions

P2065

  • Straight Flat Fluted Pole
  • Fluted Base
  • 10′, 12′, 14′, 16′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.267″ Wall
  • 16″ dia. x 21″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 11.78-25.34 EPA @ 80 MPH
  • 6.34-15.00 EPA @ 100 MPH
Spec Sheet Instructions

P2071

  • Straight Fluted Pole
  • Fluted Bottleneck/Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 16″ dia. x 47″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 5.34-12.29 EPA @ 80 MPH
  • 2.42-6.74 EPA @ 100 MPH
Spec Sheet Instructions

P2165

  • Straight Flat Fluted Pole
  • Fluted Base
  • 12′, 14′, 16′, 18′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.267″ Wall
  • 20 dia. x 25 3/8″ Base Size
  • 8-16″ Bolt Circle
  • Base Cover N/A
  • 8.78-18.42 EPA @ 80 MPH
  • 4.43-10.56 EPA @ 100 MPH
Spec Sheet Instructions

P2170

  • Tapered Pole
  • Fluted Base
  • 12′, 14′, 16′, 18′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ (12′), 0.188″ Wall
  • 20 dia. x 25 3/8″ Base Size
  • 8-16″ Bolt Circle
  • Base Cover N/A
  • 9.38-12.81 EPA @ 80 MPH
  • 4.90-7.47 EPA @ 100 MPH
Spec Sheet Instructions

P2520

  • Tapered Pole
  • Fluted Bottleneck/Square Base
  • 10′, 12′, 14′, 16′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 12 3/4 sq. x 43 3/4″ Base Size
  • 11-14″ Bolt Circle
  • 14″ sq. x 9.38″ Base Cover
  • 12.76-27.80 EPA @ 80 MPH
  • 7.46-17.27 EPA @ 100 MPH
Spec Sheet Instructions

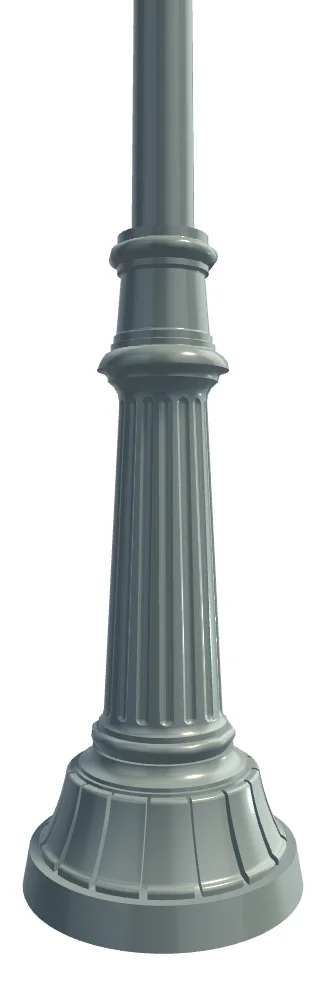

P2525

  • Tapered Pole
  • Fluted Bottleneck/Round Base
  • 10′, 12′, 14′, 16′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 12 3/4 sq. x 43 3/4″ Base Size
  • 11-14″ Bolt Circle
  • 19″ dia. x 9 1/4″ Base Cover
  • 12.76-27.80 EPA @ 80 MPH
  • 7.46-17.27 EPA @ 100 MPH
Spec Sheet Instructions

P2540

  • Straight Flat Fluted Pole
  • Fluted Bottleneck/Square Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.313″ Wall
  • 12 3/4 sq. x 43 3/4″ Base Size
  • 11-14″ Bolt Circle
  • 14″ sq. x 9.38″ Base Cover
  • 5.54-13.78 EPA @ 80 MPH
  • 2.72-8.34 EPA @ 100 MPH
Spec Sheet Instructions

P2550

  • Straight Flat Fluted Pole
  • Fluted Bottleneck/Square Base
  • 12′, 14′, 16′, 18′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.267″ Wall
  • 12 3/4 sq. x 43 3/4″ Base Size
  • 11-14″ Bolt Circle
  • 14″ sq. x 9.38″ Base Cover
  • 10.65-23.42 EPA @ 80 MPH
  • 5.99-14.48 EPA @ 100 MPH
Spec Sheet Instructions

P2555

  • Straight Flat Fluted Pole
  • Fluted Bottleneck/Round Base
  • 12′, 14′, 16′, 18′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.267″ Wall
  • 12 3/4 sq. x 43 3/4″ Base Size
  • 11-14″ Bolt Circle
  • 19″ dia. x 9 1/4″ Base Cover
  • 10.65-23.42 EPA @ 80 MPH
  • 5.99-14.48 EPA @ 100 MPH
Spec Sheet Instructions

P2560

  • Straight Fluted Pole
  • Fluted Bottleneck/Square Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 12 3/4 sq. x 43 3/4″ Base Size
  • 11-14″ Bolt Circle
  • 14″ sq. x 9.38″ Base Cover
  • 5.54-13.78 EPA @ 80 MPH
  • 2.72-8.34 EPA @ 100 MPH
Spec Sheet Instructions

P2565

  • Straight Fluted Pole
  • Fluted Bottleneck/Round Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 12 3/4 sq. x 43 3/4″ Base Size
  • 11-14″ Bolt Circle
  • 19″ dia. x 9 1/4″ Base Cover
  • 5.54-13.78 EPA @ 80 MPH
  • 2.72-8.34 EPA @ 100 MPH
Spec Sheet Instructions

P3120

  • Tapered Pole
  • Fluted Bottleneck Floral Base
  • 12′, 14′, 16′, 18′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ (12′), 0.188″ Wall
  • 17″ dia. x 29″ Base Size
  • 8-13″ Bolt Circle
  • Base Cover N/A
  • 9.71-13.77 EPA @ 80 MPH
  • 5.11-8.09 EPA @ 100 MPH
Spec Sheet Instructions

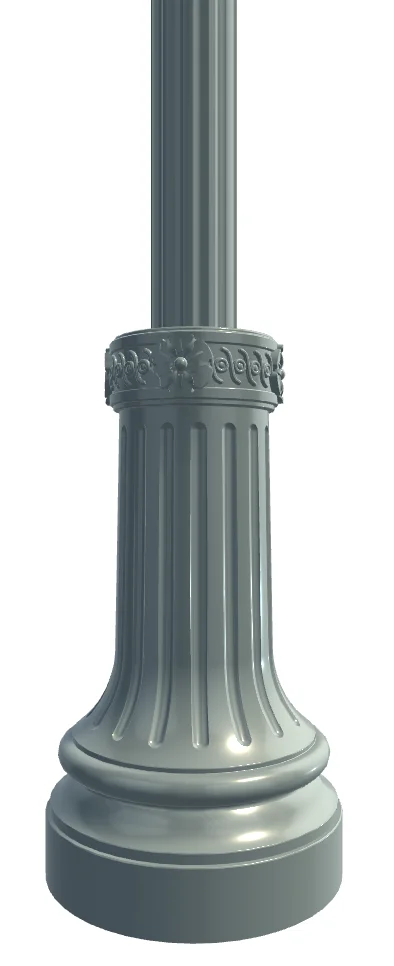

P3165

  • Straight Flat Fluted Pole
  • Fluted Bottleneck Floral Base
  • 12′, 14′, 16′, 18′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188″ Wall
  • 17″ dia. x 29″ Base Size
  • 8-13″ Bolt Circle
  • Base Cover N/A
  • 18.99-36.78 EPA @ 80 MPH
  • 10.98-22.32 EPA @ 100 MPH
Spec Sheet Instructions

P4020

  • Tapered Pole
  • Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 15″ dia. x 46 1/8″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 8.40-18.69 EPA @ 80 MPH
  • 4.83-11.61 EPA @ 100 MPH
Spec Sheet Instructions

P4030

  • Straight Pole
  • Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 15″ dia. x 46 1/8″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 8.40-18.69 EPA @ 80 MPH
  • 4.83-11.61 EPA @ 100 MPH
Spec Sheet Instructions

P4031

  • Straight Pole
  • Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 4″ Pole Diameter
  • 4″ Tenon Diameter
  • 0.125″ Wall
  • 15″ dia. x 46 1/8″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 8.40-18.69 EPA @ 80 MPH
  • 4.83-11.61 EPA @ 100 MPH
Spec Sheet Instructions

P4120

  • Tapered Pole
  • Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 19″ dia. x 54 1/2″ Base Size
  • 8-14″ Bolt Circle
  • Base Cover N/A
  • 6.72-15.28 EPA @ 80 MPH
  • 3.51-9.33 EPA @ 100 MPH
Spec Sheet Instructions

P4130

  • Straight Pole
  • Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 19″ dia. x 54 1/2″ Base Size
  • 8-14″ Bolt Circle
  • Base Cover N/A
  • 7.53-16.74 EPA @ 80 MPH
  • 4.03-10.26 EPA @ 100 MPH
Spec Sheet Instructions

P4131

  • Straight Pole
  • Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 4″ Pole Diameter
  • 4″ Tenon Diameter
  • 0.125″ Wall
  • 19″ dia. x 54 1/2″ Base Size
  • 8-14″ Bolt Circle
  • Base Cover N/A
  • 7.53-16.74 EPA @ 80 MPH
  • 4.03-10.26 EPA @ 100 MPH
Spec Sheet Instructions

P4420

  • Tapered Pole
  • Fluted Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 15 1/2″ dia. x 48″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 10.59.23.29 EPA @ 80 MPH
  • 5.95-14.40 EPA @ 100 MPH
Spec Sheet Instructions

P4465

  • Straight Flat Fluted Pole
  • Fluted Bottleneck Base
  • 12′, 14′, 16′, 18′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.267″ Wall
  • 15 1/2″ dia. x 48″ Base Size
  • 8-12″ Bolt Circle
  • Base Cover N/A
  • 10.59.23.29 EPA @ 80 MPH
  • 5.95-14.40 EPA @ 100 MPH
Spec Sheet Instructions

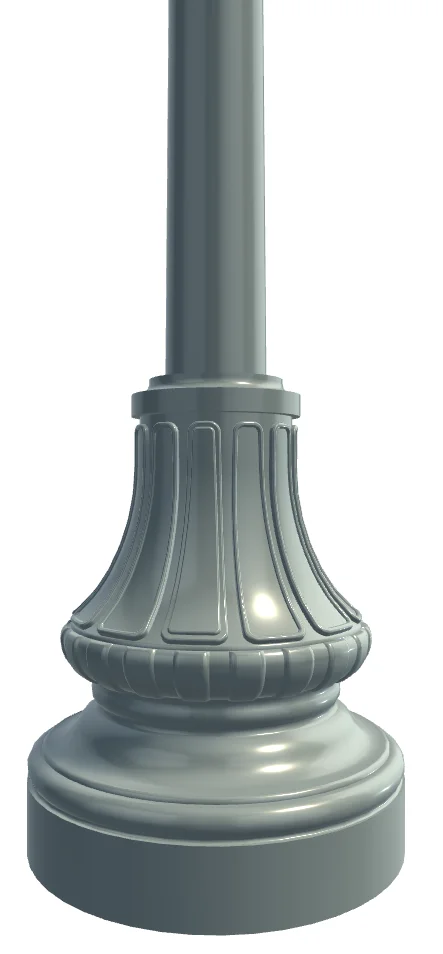

P5020

  • Tapered Pole
  • Fluted Base
  • 12′, 14′, 16′, 18′ Height
  • 5-3″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.188″ Wall
  • 17″ dia. x 21″ Base Size
  • 8-13″ Bolt Circle
  • Base Cover N/A
  • 6.80-13.77 EPA @ 80 MPH
  • 3.67-8.12 EPA @ 100 MPH
Spec Sheet Instructions

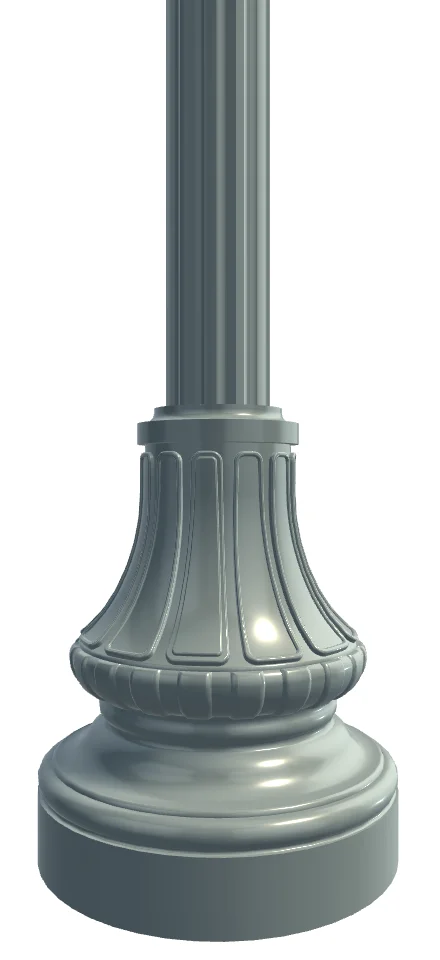

P5065

  • Straight Flat Fluted Pole
  • Fluted Base
  • 12′, 14′, 16′, 18′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.267″ Wall
  • 17″ dia. x 21″ Base Size
  • 8-13″ Bolt Circle
  • Base Cover N/A
  • 13.99-28.22 EPA @ 80 MPH
  • 7.60-16.70 EPA @ 100 MPH
Spec Sheet Instructions

P5092

  • Tapered Fluted Pole
  • Fluted Base
  • 12′, 14′, 16′ Height
  • 6-4″ Tapered Pole Diameter
  • 3″ Tenon Diameter
  • 0.188″ Wall
  • 17″ dia. x 21″ Base Size
  • 8-13″ Bolt Circle
  • Base Cover N/A
  • 11.61-20.55 EPA @ 80 MPH
  • 6.41-12.12 EPA @ 100 MPH
Spec Sheet Instructions

P9300

  • Straight Flat Fluted Pole
  • Simple Round Base
  • 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188-0.313″ Wall
  • 9″ dia. Base Size
  • 7″ Bolt Circle
  • Base Cover N/A
  • 7.38-16.65 EPA @ 80 MPH
  • 4.03-10.15 EPA @ 100 MPH
Spec Sheet Instructions

P9500

  • Straight Flat Fluted Pole
  • Simple Square Base
  • 10′, 12′, 14′, 16′ Height
  • 5″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.188 – 0.267″ Wall
  • 9″ sq. Base Size
  • 8-9″ Bolt Circle
  • Base Cover N/A
  • 11.44-24.87 EPA @ 80 MPH
  • 7.03-15.71 EPA @ 100 MPH
Spec Sheet Instructions

306

  • Straight Fluted Pole
  • Fluted Base
  • 8′, 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 17″ dia. x 21-5/8″ Base Size
  • 7″ Bolt Circle
  • Base Cover N/A
  • 6.86-19.69 EPA @ 80 MPH
  • 2.42-9.94 EPA @ 100 MPH
Spec Sheet Instructions

754

  • Straight Flat Fluted Pole
  • Fluted Bottleneck/Base
  • 8′, 10′, 12′, 14′, 16′ Height
  • 4″ Pole Diameter
  • 3″ Tenon Diameter
  • 0.125″ Wall
  • 17″ dia. x 18-3/4″ Base Size
  • 7″ Bolt Circle
  • Base Cover N/A
  • 12.35-38.53 EPA @ 80 MPH
  • 5.55-20.07 EPA @ 100 MPH
Spec Sheet Instructions

OUTDOOR 3D CONFIGURATOR
